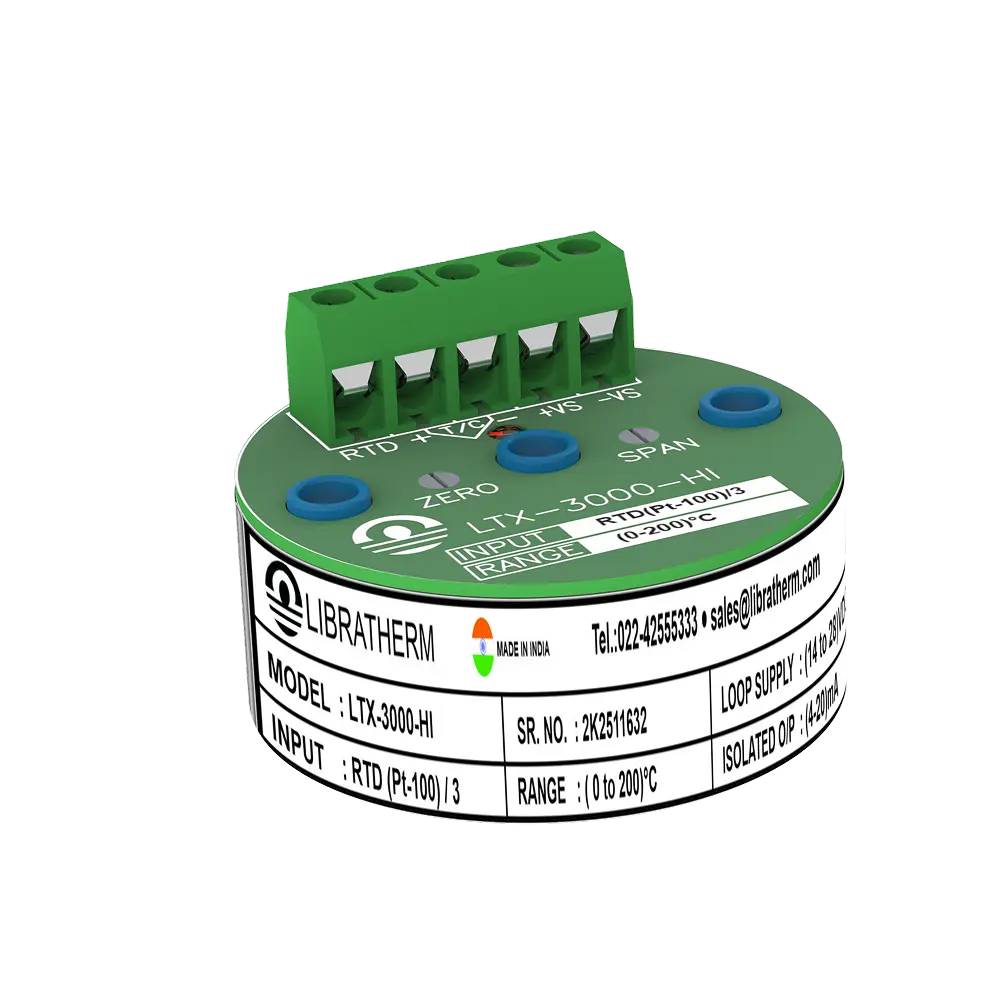

LTX-3000-HI-1 – Two-Wire Isolated Temperature Transmitter (Head Mounted) for Simplex Sensor.

Select Part No

Clear

SKU: N/A Categories: Temperature Transmitters, Transmitters

Key Features

Two wire design (supply and output on the same lines).
Accepts RTD (Pt-100) / thermocouple / millivolt input.
(4-20) mA non-isolated and isolated output.
ZERO and SPAN adjustments for on-site calibration.
Easily fits in std. thermocouple head (weather or flame proof or in explosion proof JB).
Loop supply of 12 to 36VDC (with loop continuity LED).
Saturation or open sensor current limited to 25Ma.
Reverse polarity protection.

To transmit thermocouple or RTD signals over long distances without noise and loss of accuracy.
Eliminates the use of costly compensating cable.
Helpful in converting other mV/Ohms signals to equivalent 4- 20mA loop.

Parameters	Description
Single Input	Thermocouple, RTD (Pt-100) or resistance signal from displacement, position or level sensor
Range	Subject to specified input (Refer ordering information table)
Output	Single (4-20) mA, two-wire and loop powered (calibrated linearly to the input signal).
Accuracy	± 0.5 % to +/- 1% of the calibrated range or better including linearity, Hysterisis, and compensation error.
Calibration	On site using ZERO / SPAN presets (user settable using a small screw driver)
	Zero Adjustment: +/-25% of the range (20 Turns).
	Span Adjustment: +/- 25% of the range (20 Turns).
Loop supply (Vs)	(14-28) VDC for the isolated version LTX-3000-HI-1
Loop Status	The built in Red LED indicates the continuity status of the loop.
	LED will glow if the current loop is continuous.
Loop Resistance	600 Ohms @ 24VDC (loop supply dependent).
Max. Load Resistance	RL Max = (Vs-12V) / 20mA. RL Max = (Vs-14V) / 20mA (for Isolated version)
Isolation	Input and Output are galvanically isolated (> 1kV) for isolated models.
Burn Out Detection	The output shall saturate > 20mA (max. 25mA @ 24VDC loop supply)
Operating Temp.	10°C - 70°C
Sizes	44 Dia. X 26 mm (H)
	Mounting holes at 33.0 mm apart.
Certification	CE certified (Low Voltage Directives – 2014/35/EU and EMC Directives – 2014/30/EU)

Sr. No.	Model	Specifications	Part No.
SIMPLEX ISOLATED TRANSMITTER - K TC
1	LTX-3000-HI-1	INPUT : K TYPE T/C RANGE : 0 to 400 °C	2003-1
2	LTX-3000-HI-1	INPUT : K TYPE T/C RANGE : 0 to 600 °C	2003-2
3	LTX-3000-HI-1	INPUT : K TYPE T/C RANGE : 0 to 800 °C	2003-3
4	LTX-3000-HI-1	INPUT : K TYPE T/C RANGE : 0 to 1000 °C	2003-4
5	LTX-3000-HI-1	INPUT : K TYPE T/C RANGE : 0 to 1200 °C	2003-5
SIMPLEX TRANSMITTER - RTD(PT-100)
6	LTX-3000-HI-1	INPUT : RTD Pt-100 RANGE : -50 to 100 °C	2003-6
7	LTX-3000-HI-1	INPUT : RTD Pt-100 RANGE : 0 to 100 °C	2003-7
8	LTX-3000-HI-1	INPUT : RTD Pt-100 RANGE : 0 to 150 °C	2003-8
9	LTX-3000-HI-1	INPUT : RTD Pt-100 RANGE : 0 to 200 °C	2003-9
10	LTX-3000-HI-1	INPUT : RTD Pt-100 RANGE : 0 to 250 °C	2003-10
11	LTX-3000-HI-1	INPUT : RTD Pt-100 RANGE : 0 to 300 °C	2003-11
12	LTX-3000-HI-1	INPUT : RTD Pt-100 RANGE : 0 to 350 °C	2003-12
13	LTX-3000-HI-1	INPUT : RTD Pt-100 RANGE : 0 to 400 °C	2003-13
