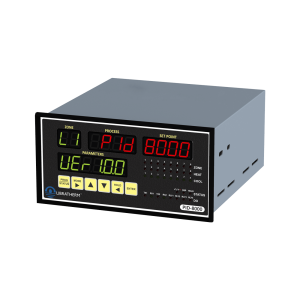

Multi-Loop PID Temperature Controller – PID-8000
₹25,200 – ₹33,600
Prices are inclusive of Delivery Charges.
PID-8000 – 4/6/8 loop PID Controller for heating and cooling control.
Libratherm offers ARM Processor-based one to eight loop PID Temperature Controller (Model PID-8000) for processes requiring multiple zones of heating or heating plus cooling control. It is most suitable for the difficult process, which results in frequent system disturbances, and applications where simultaneous and accurate temperature control of a number of heating/cooling zone is required. It also eliminates the need for a number of individual PID or ON/OFF Temperature Controllers thereby saves on cost. PID-8000 can accept max 8 similar type of Thermocouples or RTD (Pt-100) inputs and can provide switching PID or ON/OFF Control output in the form of DC Pulses or SSR Drivers for heating and cooling. It can also simultaneously provide 8 analog PID control Outputs in the form of (4-20mA) or (0-5) volt, which can be used to drive external SCR Heater Power Controller or other actuators. Open or Faulty sensor indications for each zone are also displayed with the respective Zone No. Each zone loop parameter like PID, SET, Hysteresis, Power Limit, and Ramp Time values can be independently programmed from the user-friendly front panel membrane keyboard.
The display scan rate is programmable from 1 to 99 seconds, whereas the internal control scanning is at the rate of 40mS. It also provides common High and Low alarm relay outputs, which can be used for external temperature-dependent, inter-locking, or audio-visual alarms. In brief, PID-8000 is as good as 8 independent PID controllers in a single enclosure, with the facility of different input per channel, different setpoint per channel, and different output per channel – a unique feature.
One of the serial interface RS-485 ports in Modbus protocol is available for the computer interface. The supporting window-based software allows the user to monitor the behavior of all the heating zones in both graphical and tabular form on a computer screen. 2nd RS485 port can be used for Master / Slave functions to cascade more than 1 and a maximum of 30 PID-8000 with each other.
Libratherm also supplies complete ready to use Temperature Control Panel using PID-8000 and other switchgear items and power controllers, which finds its applications in large heating systems having a number of sensors or number of heaters such as Plastic Extruders manufacturing pipes, sheets, etc, Plastic Injection for runner less molding, Tunnel Furnaces for annealing, large Ovens and similar heating systems for industrial use.
Features:
- Arm processor based design.
- Elegant looks and Very easy to operate.
- Accepts user specified inputs.
- PID or ON / Off heat or Heat/Cool action per channel.
- All zones are individually configurable for Heat or Cool.
- Compact in size – ½ DIN (192 x 96 x 160 mm).
- Versatile application and sturdy in operation.
- Accuracy better than ± 0.1 % of the full scale.
- Dual port RS 485 Serial communication available.
- Plastic extruders for pipes, sheets etc
- Plastic injection, for runner less moulding
- Heat treatment using tunnel furnace
- Large furnace and oven for homogeneous control
- Environmental chambers
- Multi zone furnace
- Average temperature control of large heating system
Application:
Technical Specification
| Parameter | Description |
|---|---|
| No. of Input Channels | 4, 6 or 8 |
| Input types | J, K, RTD(PT-100), (4-20)mA etc. (each channel can be of same or different input type - user must specify at the time of ordering) |
| Range | Subject to the full range of the specified input (Refer range selection table below) |
| Indicating Accuracy | Better than ± 0.1% of the specified range (Software Linearized) |
| Resolution | 0.1/1°C Subject to the specified range |
| Display | 4 digit 0.5" Red 7-segment LED for actual temperature |
| 4 digit 0.5" Red 7-segment LED for set temperature | |
| 2 digit 0.5" Green 7-segments LED for zone or channel number. | |
| 6 digit 0.5" Green 7-segments LED for various parameters. | |
| Open or Short Sensor Indication | Display shows Open or r.PoL and outputs will be turned OFF. |
| Tuning | Manual tuning of PID values. |
| Settings | Using front panel membrane keyboard to set the various values. |
| Sampling time | Better than 25 millisecond per channel. |
| Display Scan Rate | 1 to 99 sec (programmable through front panel keyboard). |
| Skip/Hold | Available through key board in configuration mode. |
| Memory Backup | Retention of PID and set values in the non-volatile memory in the event of power failure. |
| Alarm Outputs | 2 to 4 Extra Relay outputs user configurable for common High and Low Alarms (Relay changeover contacts rated for 5A @ 230VAC). |
| Control Action | PID or ON/OFF selectable (for both Heating and Cooling control action). Optionally - Average single control output can also be provided with single Average setpoint. |
| Control Output | DC Pulse, (4-20)mA, (0-5)VDC output per zone with soft ramp start (rt) and power limit (PL) facility for analog output. |
| Digital Interface | Dual serial interface port RS-485 over MODBUS RTU protocol |
| Supply | 90-240VAC, 50/60 Hz |
| Size | 192 x 96 x 160 mm |
| Panel Cutout | 188 x 92 mm ± 0.5 mm |
Input and Range Selection
| Input | Range |
|---|---|
| J type : Fe/Con thermocouple | 0 to 760 °C |
| K type : Cr/Al thermocouple | 0 to 1372 °C |
| Pt-100 (Alpha = 0.00385) DIN 43760 | 0.0 to 400.0 °C |
| Pt-100 (Alpha = 0.00385) DIN 43760 | -200.0 to 200.0 °C |
| 4-20mA (User scalable) | 0 to 4000 count |
Ordering Information
| Sr. No. | Model | Specifications | Part No. |
|---|---|---|---|
| 1.1 | PID-8000-H-4 | K or J type t/c input and 4 loop Heat PID control + (4 x SSR outputs) for Heat + common high/low alarms. | 1513-4-1 |
| 1.2 | PID-8000-H-4 | RTD(Pt-100) input and 4 loop Heat PID control + (4 x SSR outputs for Heat) + common high/low alarms. | 1513-4-2 |
| 1.3 | PID-8000-H-4 | K or J type t/c input and 4 loop Heat PID control + (4 x (4-20)mA outputs for Heat) + common high/low alarms. | 1513-4-3 |
| 1.4 | PID-8000-H-4 | RTD(Pt-100) input and 4 loop Heat PID control + (4 x (4-20)mA outputs for Heat) + common high/low alarms. | 1513-4-4 |
| 1.5 | PID-8000-H-4 | K or J type t/c input and 4 loop Heat PID control + (4 x (4-20)mA outputs for Heat) + (4 x SSR outputs for Heat) + common high/low alarms + RS-485 interface | 1513-4-5 |
| 1.6 | PID-8000-H-4 | RTD(Pt-100) input and 4 loop Heat PID control + (4 x (4-20)mA outputs for Heat) + (4 x SSR outputs for Heat) and common high/low alarms + RS-485 interface | 1513-4-6 |
| 2.1 | PID-8000-H-6 | K or J type t/c input and 6 loop Heat PID control + (6 x SSR outputs) for Heat + common high/low alarms. | 1513-6-1 |
| 2.2 | PID-8000-H-6 | RTD(Pt-100) input and 6 loop Heat PID control + (6 x SSR outputs for Heat) + common high/low alarms. | 1513-6-2 |
| 2.3 | PID-8000-H-6 | K or J type t/c input and 6 loop Heat PID control + (6 x (4-20)mA outputs for Heat) + common high/low alarms. | 1513-6-3 |
| 2.4 | PID-8000-H-6 | RTD(Pt-100) input and 6 loop Heat PID control + (6 x (4-20)mA outputs for Heat) + common high/low alarms. | 1513-6-4 |
| 2.5 | PID-8000-H-6 | K or J type t/c input and 6 loop Heat PID control + (6 x (4-20)mA outputs for Heat) + (6 x SSR outputs for Heat) + common high/low alarms + RS-485 interface | 1513-6-5 |
| 2.6 | PID-8000-H-6 | RTD(Pt-100) input and 6 loop Heat PID control + (6 x (4-20)mA outputs for Heat) + (4 x SSR outputs for Heat) and common high/low alarms + RS-485 interface | 1513-6-6 |
| 3.1 | PID-8000-H-8 | K or J type t/c input and 8 loop Heat PID control + (8 x SSR outputs) for Heat + common high/low alarms. | 1513-8-1 |
| 3.2 | PID-8000-H-8 | RTD(Pt-100) input and 8 loop Heat PID control + (8 x SSR outputs for Heat) + common high/low alarms. | 1513-8-2 |
| 3.3 | PID-8000-H-8 | K or J type t/c input and 8 loop Heat PID control + (8 x (4-20)mA outputs for Heat) + common high/low alarms. | 1513-8-3 |
| 3.4 | PID-8000-H-8 | RTD(Pt-100) input and 8 loop Heat PID control + (8 x (4-20)mA outputs for Heat) + common high/low alarms. | 1513-8-4 |
| 3.5 | PID-8000-H-8 | K or J type t/c input and 8 loop Heat PID control + (8 x (4-20)mA outputs for Heat) + (8 x SSR outputs for Heat) + common high/low alarms + RS-485 interface | 1513-8-5 |
| 3.6 | PID-8000-H-8 | RTD(Pt-100) input and 8 loop Heat PID control + (8 x (4-20)mA outputs for Heat) + (8 x SSR outputs for Heat) and common high/low alarms + RS-485 interface | 1513-8-6 |
| 4.1 | PID-8000-HC-4 | K or J type t/c input and 4 loop Heat/Cool PID control + (4 x SSR outputs for Heat and 4 x SSR outputs for Cool) + common high/low alarms. | 1514-4-1 |
| 4.2 | PID-8000-HC-4 | RTD(Pt-100) input and 4 loop Heat/Cool PID control + (4 x SSR outputs for Heat and 4 x SSR outputs for Cool) + common high/low alarms. | 1514-4-2 |
| 4.3 | PID-8000-HC-4 | K or J type t/c input and 4 loop Heat/Cool PID control + (4 x (4-20)mA outputs for Heat) + (4 x SSR outputs for Cool) + common high/low alarms. | 1514-4-3 |
| 4.4 | PID-8000-HC-4 | RTD(Pt-100) input and 4 loop Heat/Cool PID control + (4 x (4-20)mA for Heat + 4 x SSR outputs for Cool) + common high/low alarms. | 1514-4-4 |
| 4.5 | PID-8000-HC-4 | K or J type t/c input and 4 loop Heat/Cool PID control + (4 x (4-20)mA outputs for Heat + 4 x SSR outputs for Cool) + common high/low alarms + RS-485 interface | 1514-4-5 |
| 4.6 | PID-8000-HC-4 | RTD(Pt-100) input and 4 loop Heat/Cool PID control + (4 x (4-20)mA outputs for Heat + 4 x SSR outputs for Cool) + common high/low alarms + RS-485 interface | 1514-4-6 |
| 5.1 | PID-8000-HC-6 | K or J type t/c input and 6 loop Heat/Cool PID control + (6 x SSR outputs for Heat and 6 x SSR outputs for Cool) + common high/low alarms. | 1514-6-1 |
| 5.2 | PID-8000-HC-6 | RTD(Pt-100) input and 6 loop Heat/Cool PID control + (6 x SSR outputs for Heat and 6 x SSR outputs for Cool) + common high/low alarms. | 1514-6-2 |
| 5.3 | PID-8000-HC-6 | K or J type t/c input and 6 loop Heat/Cool PID control + (6 x (4-20)mA outputs for Heat) + (6 x SSR outputs for Cool) + common high/low alarms. | 1514-6-3 |
| 5.4 | PID-8000-HC-6 | RTD(Pt-100) input and 6 loop Heat/Cool PID control + (6 x (4-20)mA for Heat + 6 x SSR outputs for Cool) + common high/low alarms. | 1514-6-4 |
| 5.5 | PID-8000-HC-6 | K or J type t/c input and 6 loop Heat/Cool PID control + (6 x (4-20)mA outputs for Heat + 6 x SSR outputs for Cool) + common high/low alarms + RS-485 interface | 1514-6-5 |
| 5.6 | PID-8000-HC-6 | RTD(Pt-100) input and 6 loop Heat/Cool PID control + (6 x (4-20)mA outputs for Heat + 6 x SSR outputs for Cool) + common high/low alarms + RS-485 interface | 1514-6-6 |
| 6.1 | PID-8000-HC-8 | K or J type t/c input and 8 loop Heat/Cool PID control + (8 x SSR outputs for Heat and 8 x SSR outputs for Cool) + common high/low alarms. | 1514-8-1 |
| 6.2 | PID-8000-HC-8 | RTD(Pt-100) input and 8 loop Heat/Cool PID control + (8 x SSR outputs for Heat and 8 x SSR outputs for Cool) + common high/low alarms. | 1514-8-2 |
| 6.3 | PID-8000-HC-8 | K or J type t/c input and 8 loop Heat/Cool PID control + (8 x (4-20)mA outputs for Heat) + (8 x SSR outputs for Cool) + common high/low alarms. | 1514-8-3 |
| 6.4 | PID-8000-HC-8 | RTD(Pt-100) input and 8 loop Heat/Cool PID control + (8 x (4-20)mA for Heat + 8 x SSR outputs for Cool) + common high/low alarms. | 1514-8-4 |
| 6.5 | PID-8000-HC-8 | K or J type t/c input and 8 loop Heat/Cool PID control + (8 x (4-20)mA outputs for Heat + 8 x SSR outputs for Cool) + common high/low alarms + RS-485 interface | 1514-8-5 |
| 6.6 | PID-8000-HC-8 | RTD(Pt-100) input and 8 loop Heat/Cool PID control + (8 x (4-20)mA outputs for Heat + 8 x SSR outputs for Cool) + common high/low alarms + RS-485 interface | 1514-8-6 |
