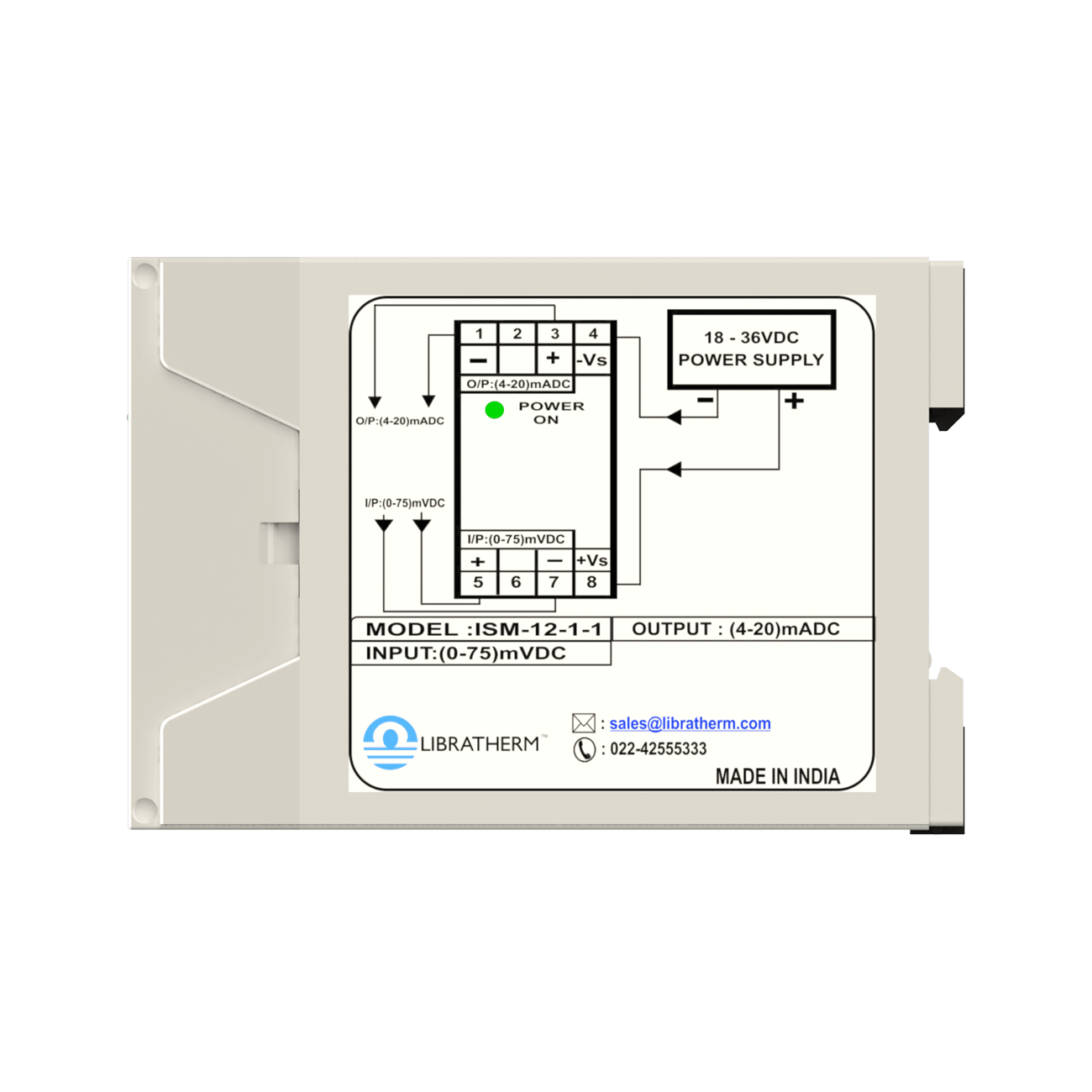

Signal Isolator AC to DC Signal – ISM-12-1-1 (H)
₹3,413
Prices are inclusive of Delivery Charges.
Product Description:
ISM-12-1-1 (H) – Single AC/DC input & Single DC output operating on 24VDC (18-36)VDC
Please refer the Ordering Information table before placing your order.
Key Features
- Accepts DC signal inputs and provides optically isolated proportional analogue output.
- On site calibration facility-using ZERO/SPAN presets.
- Operates on 230VAC or 24VDC (18-36) VDC.
- Designed using ultra low drift components for long term stability.
Application
- The interface of low-level signals coming from the sensors or transducers from the plant to DCS, SCADA, PLC or PID process controllers without ground line interferences.
- Signal multiplier – single input and 2 to 4 outputs.
Technical Specification
Parameters | Description |
---|---|
Input | 1) DC input - 50mV/75mV/100mV - DC shunt |
2) AC input - Current (through external CT) (0-1) A or (0-5) A or Voltage (0-110) VAC or (0-230) VAC or (0-440) VAC | |
3) High voltage DC from Bridge rectifier or others 200,400,600,700VDC | |
Output | (4-20) mA, (0-5) VDC, (0-10) VDC |
For current output, RL (max.) = 500 Ohms. | |
For voltage output, RL (min) = 100K Ohms. | |
No. Of Outputs | 1 to 4 parallel independent outputs can be provided for single input. Each output can be same or different. |
Accuracy | Absolute to the input, Output is proportional to the average vale of AC signal. |
Calibration | On site calibration facility through ZERO and SPAN presets accessible to the user. |
Isolation | Input and Output are galvanically/optically isolated for DC inputs and galvanically isolated for the AC inputs. Power supply is also isolated from Input and Output. (3-way isolation). Multiple Outputs are not isolated from each other. |
Isolation Voltage | Greater than 1 KV. |
Mounting | 35-mm. DIN rail mounting ABS enclosure. |
Supply | AC Supply: 230VAC +/-10%, 50/60Hz or |
DC Supply: 24VDC (18-36)VDC . | |
Size | 22 x75 x 110 |
Ordering Information
Sr. No. | Specifications | Part No. |
---|---|---|
1.1 | Input : 0 to 5 AAC Output : 4-20mA | 2022-1-1 |
1.2 | Input : 0 to 5 AAC Output : 0-5V | 2022-1-2 |
1.3 | Input : 0 to 5 AAC Output : 0-10V | 2022-1-3 |
1.4 | Input : 0-230 VAC Output : 4-20mA | 2022-1-4 |
1.5 | Input : 0-230 VAC Output : 0-5V | 2022-1-5 |
1.6 | Input : 0-230 VAC Output : 0-10V | 2022-1-6 |
1.7 | Input : 0-440 VAC Output : 4-20mA | 2022-1-7 |
1.8 | Input : 0-440 VAC Output : 0-5V | 2022-1-8 |
1.9 | Input : 0-440 VAC Output : 0-10V | 2022-1-9 |
2.1 | Input : 0 to 50mVDC Output : 4-20mA | 2024-1-1 |
2.2 | Input : 0 to 50mVDC Output : 0-5V | 2024-1-2 |
2.3 | Input : 0 to 50mVDC Output : 0-10V | 2024-1-3 |
2.4 | Input : 0 to 75mVDC Output : 4-20mA | 2024-1-4 |
2.5 | Input : 0 to 75mVDC Output : 0-5V | 2024-1-5 |
2.6 | Input : 0 to 75mVDC Output : 0-10V | 2024-1-6 |
2.7 | Input : 0 to 100mVDC Output : 4-20mA | 2024-1-7 |
2.8 | Input : 0 to 100mVDC Output : 0-5V | 2024-1-8 |
2.9 | Input : 0 to 100mVDC Output : 0-10V | 2024-1-9 |
3.1 | Input : 0 to 200VDC Output : 4-20mA | 2026-1-1 |
3.2 | Input : 0 to 200VDC Output : 0-5V | 2026-1-2 |
3.3 | Input : 0 to 200VDC Output : 0-10V | 2026-1-3 |
3.4 | Input : 0 To 500VDC Output : 4-20mA | 2026-1-4 |
3.5 | Input : 0 to 500VDC Output : 0-5V | 2026-1-5 |
3.6 | Input : 0 to 500VDC Output : 0-10V | 2026-1-6 |
3.7 | Input : 0 to 700mVDC Output : 4-20mA | 2026-1-7 |
3.8 | Input : 0 to 700VDC Output : 0-5V | 2026-1-8 |
3.9 | Input : 0 to 700VDC Output : 0-10V | 2026-1-9 |
