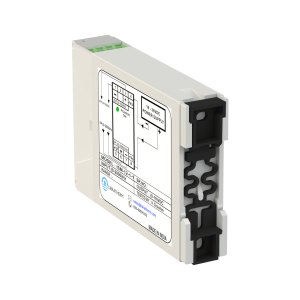

Signal Isolator Frequency to DC Signal – ISM-12-1-1 (F)
₹3,413
Prices are inclusive of Delivery Charges.
Product Description:
ISM-12-1-1 (F) – Single input & Single output operating on 24VDC (18-36)VDC
Please refer the Ordering Information table before placing your order.
Key Features
- Accepts Frequency/Clock signal inputs and provides optically isolated proportional analogue output.
- On site calibration facility-using ZERO/SPAN presets.
- Operates on 24VDC (18-36) VDC.
- Designed using ultra low drift components for long term stability.
Application
- Interface of low-level signals coming from the sensors or transducers from the plant to DCS, SCADA, PLC or PID process controllers without ground line interferences.
- Signal multiplier – single input and 2 to 4 outputs.
Technical Specification
| Parameters | Description |
|---|---|
| Input | Clock Frequency of (0-1)KHz, (0-5)KHz, (0-10)KHz Frequency 2 DC levels of (5-24)vdc |
| Range | User may specify the required temperature range (for RTD or T/C input). For other inputs, the required calibration range can be specified. |
| Output | (4-20) mA, (0-5) VDC, (0-10) VDC, |
| For current output, RL (max.) = 500 Ohms. | |
| For voltage output, RL (min) = 100K Ohms. | |
| No. Of Outputs | Maximum 4 parallel independent outputs can be provided for a single input. |
| Each output can be the same type or of a different type. | |
| Accuracy | Absolute to the input. |
| Calibration | On-site calibration facility through ZERO and SPAN presets accessible to the user. |
| Isolation | Input and Output are optically isolated for DC inputs. The power supply is also isolated from Input and Output. (3-way isolation) |
| Isolation Voltage | Greater than 1 KV. |
| Mounting | 35-mm. DIN rail mounting ABS enclosure. |
| Supply | DC Supply: 24VDC (18-36) VDC. |
| Size | 22 x 75 x 110 |
Ordering Information
| Sr. No. | Specifications | Part No. |
|---|---|---|
| 1.1 | Input : (0-1)KHZ Output : 4-20mA | 2028-1-1 |
| 1.2 | Input : (0-1)KHZ Output : 0-5V | 2028-1-2 |
| 1.3 | Input : (0-1)KHZ Output : 0-10V | 2028-1-3 |
| 1.4 | Input : (0-5)KHZ Output : 4-20mA | 2028-1-4 |
| 1.5 | Input : (0-5)KHZ Output : 0-5V | 2028-1-5 |
| 1.6 | Input : (0-5)KHZ Output : 0-10V | 2028-1-6 |
| 1.7 | Input : (0-10)KHZ Output : 4-20mA | 2028-1-7 |
| 1.8 | Input : (0-10)KHZ Output : 0-5V | 2028-1-8 |
| 1.9 | Input : (0-10)KHZ Output : 0-10V | 2028-1-9 |
