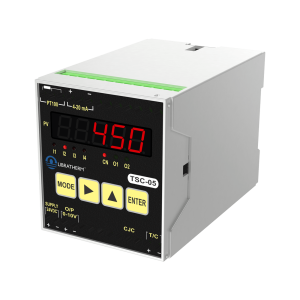

Signal Isolator with Display – TSC-05
₹7,875 – ₹10,500
Prices are inclusive of Delivery Charges.
Product Description:
TSC-05 – Microcontroller based Signal Convertor / Isolator Module with 5 digit display.
Please refer the Ordering Information table before placing your order.
Key Features
- Accepts universal or fixed DC signal inputs and provides single or dual optically isolated, Proportional and linearized analogue output.
- Bright red 7 segment LED display.
- On site calibration and input selection facility-using front panel key board.
- Operates on 24VDC power supply.
- DIN rail mounting.
Technical Specification
| Parameters | Description |
|---|---|
| Input | Thermocouple types J,K,T,E,R,S,N and RTD (Pt-100) and 4-20mA (User selectable) – processed using 16bit ADC |
| Display | 5 digit 0.3” red 7 segment LED display |
| Range | Display range is subject to the selected input. |
| Accuracy | For thermocouple and RTD inputs the software linearization is done for +/-1 or +/-0.1 °C indicating accuracy. For other input the accuracy is absolute to the input. |
| Output | (4-20) mA, (0-5) VDC, (0-10) VDC proportional to the specified input range. |
| For current output, RL (max.) = 400 Ohms. | |
| For voltage output, RL (min) = 100K Ohms. | |
| Processed using 12 bit DAC. | |
| No. of Outputs | Maximum 2 parallel independent outputs can be provided for single input. |
| Each output can be of same or different type. | |
| Response Time | Less than 50 mS. |
| Cold Junction Compensation | Automatic CJC for Thermocouple Input using built in IC sensor. |
| Calibration | On site calibration facility through front panel keyboard. |
| Open sensor indication | Provided. |
| Isolation | Input and Output are optically isolated for DC inputs. |
| Three port isolation - Power supply to Input, Power Supply to Output and | |
| Input to Output are isolated from each other. | |
| Isolation Voltage | Greater than 1KV AC/DC. |
| Serial Interface | RS485 – MODBUS RTU protocol (Optional) |
| Mounting | 35-mm. DIN rail mounting ABS enclosure. |
| Power Supply | 24VDC +/- 5%. @ max. 150mA |
| Operating/Storage Temperature | 0 to 50 °C Max. / 0 to 70 °C @ 10 to 85% RH (Non condensing) |
| Size | 70 x 75 x 110 mm. (ABS plastic enclosure - DIN rail mountable) |
Input and Range Selection
| Input type | Range |
|---|---|
| J t/c | 0 to 760 °C |
| K t/c | 0 to 1372 °C |
| T t/c | 0 to 400 °C |
| E t/c | 0 to 1000 °C |
| R t/c | 0 to 1760 °C |
| S t/c | 0 to 1760 °C |
| N t/c | 0 to 1300 °C |
| RTD (Pt-100) | 0.0 to +400.0 °C |
| (4-20)mA | -9999 to +9999 UOM |
| Note: User may specify any other input type as per the requirement. | |
Ordering Information
| Sr. No. | Specifications | Part No. |
|---|---|---|
| 1.1 | Input : 4-20mA, Output1 : 4-20mA,Output2 : RS-485 | 2010-1-1 |
| 1.2 | Input : 4-20mA, Output1 : 4-20mA,Output2 : 4-20mA | 2010-1-2 |
| 1.3 | Input : 0-5V, Output1 : 0-5V, Output2 : RS-485 | 2010-1-3 |
| 1.4 | Input : 0-5V, Output1 : 0-5V,Output2 : 0-5V | 2010-1-4 |
| 1.5 | Input : 0-10V,Output1 : 0-10V,Output2 : RS-485 | 2010-1-5 |
| 1.6 | Input : 0-10V Output1 : 0-10V,Output2 : 0-10V | 2010-1-6 |
| 1.7 | Input : 0-5V Output1 : 4-20mA,Output2 : RS-485 | 2010-1-7 |
| 1.8 | Input : 0-5V Output1 : 4-20mA,Output2 : 4-20mA | 2010-1-8 |
| 1.9 | Input : 0-10V Output1 : 4-20mA,Output2 : RS-485 | 2010-1-9 |
| 1.1 | Input : 0-10V Output1 : 4-20mA,Output2 : 4-20mA | 2010-1-10 |
| 1.11 | Input : K TC Output1 : 4-20mA,Output2 : RS-485 | 2010-1-11 |
| 1.12 | Input : K TC Output1 : 4-20mA,Output2 : 4-20mA | 2010-1-12 |
| 1.13 | Input : RTD PT-100 Output1 : 4-20mA,Output2 : RS-485 | 2010-1-13 |
| 1.14 | Input : RTD PT-100 Output1 : 4-20mA,Output2 : 4-20mA | 2010-1-14 |
| 2.1 | Input : Universal Output1 : 4-20mA,Output2 : RS-485 | 2011-1-1 |
| 2.2 | Input : Universal Output1 : 4-20mA,Output2 : 4-20mA | 2011-1-2 |
| 2.3 | Input : Universal Output1 : 0-5V,Output2 : RS-485 | 2011-1-3 |
| 2.4 | Input : Universal Output1 : 0-5V,Output2 : 0-5V | 2011-1-4 |
| 2.5 | Input : Universal Output1 : 0-10V,Output2 : RS-485 | 2011-1-5 |
| 2.6 | Input : Universal Output1 : 0-10V,Output2 : 0-10V | 2011-1-6 |
| 2.7 | Input : Universal TC Output1 : 4-20mA,Output2 : RS-485 | 2011-1-7 |
| 2.8 | Input : Universal TC Output1 : 4-20mA,Output2 : 4-20mA | 2011-1-8 |
| 2.9 | Input : Universal TC Output1 : 0-5V,Output2 : RS-485 | 2011-1-9 |
| 2.1 | Input : Universal TC Output1 : 0-5V Output2 : 0-5V | 2011-1-10 |
| 2.11 | Input : Universal TC Output1 : 0-10V,Output2 : RS-485 | 2011-1-11 |
| 2.12 | Input : Universal TC Output1 : 0-10V,Output2 : 0-10V | 2011-1-12 |
